Get the ratio right and resin rewards you with a hard, glass-clear cast that pops out flawless. Get it wrong by even a little, and you're left with a sticky, bendy, or cracked mess — often hours later, when it's too late to fix. The resin-to-hardener ratio isn't a guideline you can eyeball; it's a chemical recipe. This guide covers exactly what the ratio does, how to measure it correctly, what goes wrong when it's off, and whether a bad batch can be saved.
What is the right resin mix ratio?
There is no single universal ratio — the correct one is whatever your specific resin's label states, and it's non-negotiable. Common craft epoxies are mixed 1:1 or 2:1, but the number is set by the chemistry of that exact product. Two bottles that look identical can need completely different ratios, so the brand on the label always wins over any rule of thumb.
Here's how common ratios typically map to use and behavior. Treat it as orientation, not a substitute for your product's instructions.
| Mix ratio | Typical use | What you get |
|---|---|---|
| 1:1 | General craft & art resin | Easy to measure, moderate strength, clear finish |
| 2:1 | Structural & high-stress casts | Higher strength, harder cure |
| 3:1 | Coatings & tabletop finishes | Balanced flow and durability |
| Deep-pour formulas | Thick casts & large molds | Long working time, low heat, slow cure |
The practical takeaway: match the resin to the job before you ever measure. For thick castings, use a deep-pour resin in a mold built for depth, like our deep-pour geometric mold; for thin, glossy pieces, a standard art resin in a flat coaster mold is ideal.

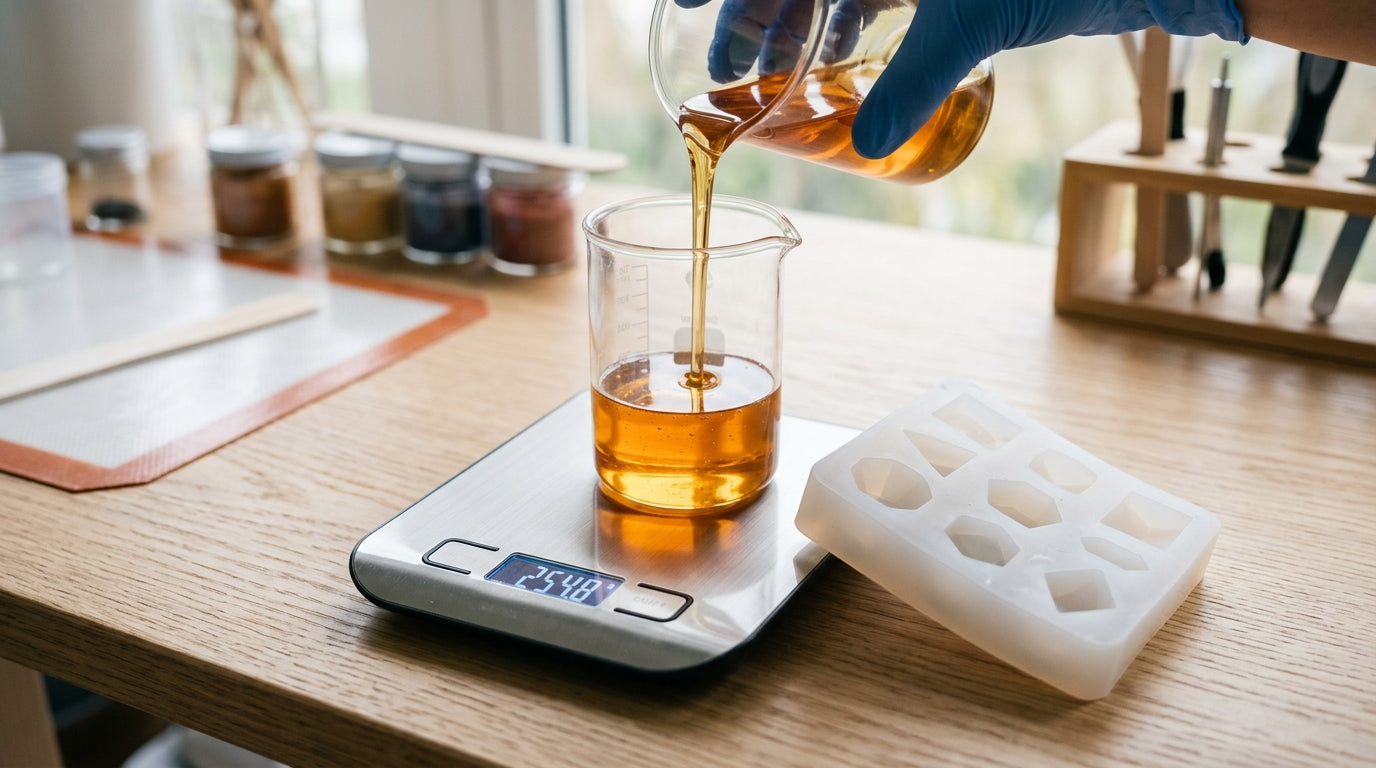

Should you measure resin by weight or by volume?
Measure by the exact method your manufacturer specifies — weight or volume — and never convert between the two. This trips up more beginners than any other step. Resin and hardener have different densities, so a 1:1 ratio by volume is not the same as 1:1 by weight. Mixing a volume-rated resin on a scale (or vice versa) throws the chemistry off even if your numbers look perfect.
- Read the label first. Find whether the ratio is given by volume or by weight, and use that method only.
- For volume, use graduated mixing cups and read at eye level on a flat surface.
- For weight, use a digital scale accurate to 0.1 g, tare between pours, and add each part slowly.
- Don't estimate small batches. Tiny pours magnify small errors, so measure even a few grams precisely.
What happens if your resin ratio is off?
An off ratio doesn't just weaken the cast — it changes how the resin cures at a chemical level, and the damage is usually permanent. Too little hardener leaves uncured resin behind; too much creates a runaway reaction. Here's how each failure shows up.
| Error | What you'll see | Why it happens |
|---|---|---|
| Too little hardener | Sticky, soft, bendy, or rubbery cast that never fully sets | Not enough curing agent to react with all the resin |
| Too much hardener | Brittle, cracked, yellowed, or overheated cast | Excess hardener speeds the reaction and spikes heat |
| Under-mixed (right ratio) | Patchy tacky spots in an otherwise cured piece | Unblended resin and hardener never reacted |
I learned this the slow way. An early batch I eyeballed "close enough" stayed faintly bendy for weeks — not sticky, just soft, like a gummy version of the crisp piece I wanted. There was no saving it. Now I measure every time, even for a single pendant.
Why is my resin still sticky, soft, or bendy after curing?
A sticky or soft cast almost always means too little hardener or incomplete mixing — the resin never got enough curing agent to finish the reaction. Double-check that you used the right ratio by the right method, then confirm you mixed for a full three minutes, scraping the sides and bottom of the cup where unmixed resin hides.
If only scattered spots are tacky while the rest is hard, the ratio was fine but the mixing wasn't thorough. For a deeper troubleshooting walkthrough on stuck and sticky casts, see our guide on why silicone molds stick and how to fix it.
Why did my resin overheat, yellow, or crack?
Overheating, yellowing, and cracking come from too much heat during the cure — usually from excess hardener or pouring too thick for the resin type. Epoxy gives off heat as it cures (an exothermic reaction), and a standard art resin poured in a deep cavity can overheat, yellow, and crack from the inside out.
The fix is matching resin to depth: use a slow deep-pour formula for thick casts, and reserve fast art resin for thin layers. If you want crisp, clear results in larger molds, a deep-pour resin paired with a resin mold built for depth prevents the heat spike entirely. For how different materials and pour depths behave, our guide on what you can cast in silicone molds breaks down cure times by type.
Can you fix a resin batch with the wrong ratio?
Usually no — once mixed and curing, resin can't be re-balanced, so prevention beats rescue every time. That said, a few situations have a partial fix.
- Surface still tacky, interior hard: wait another 24–48 hours somewhere warm and dry; a thin tacky layer sometimes finishes curing.
- Persistently sticky after 72 hours: the ratio was off. Scrape out the uncured resin, clean and dry the mold, and recast — the mold itself is almost always fine to reuse.
- Soft but fully set: if it holds shape, you can sometimes pour a correctly mixed thin coat on top to seal it, though strength won't fully recover.
The honest answer is that most ratio mistakes mean starting over. The good news: your silicone mold survives the error, so you only lose a little resin.
How do you mix resin correctly every time?
Accurate resin mixing is a short, repeatable routine — build it into muscle memory and bad batches nearly disappear.
- Warm your bottles. Stand them in warm water for a few minutes; warm resin is less viscous, measures cleaner, and releases bubbles faster.
- Measure by the label's method. Weight or volume, exactly as stated — never converted.
- Mix slowly for 3+ minutes. Stir gently to avoid whipping in air, scraping the sides and bottom the whole time.
- Transfer and re-mix. Pour into a second clean cup and stir again for a minute to catch any unmixed resin clinging to the first cup.
- Pour at the right depth. Match resin type to cast thickness to avoid overheating.
Does temperature and humidity affect the cure?
Yes — even a perfect ratio can fail in the wrong room. Epoxy cures best around 21–24°C (70–75°F). Below roughly 18°C (65°F) the reaction slows and can leave a tacky surface, and high humidity can cause a cloudy "amine blush" on top. Keep your workspace warm and dry, and let the piece cure undisturbed somewhere stable rather than a cold garage or damp basement.
Frequently Asked Questions
What is the most common resin mix ratio?
For craft and art epoxy, 1:1 and 2:1 are the most common ratios, but the correct one is always whatever your specific product's label states. Ratios are set by each resin's chemistry, so never assume — a new bottle can need a different ratio than your last one, even from the same brand.
Should I measure resin by weight or volume?
Use the exact method your manufacturer specifies and never convert between them. Resin and hardener have different densities, so 1:1 by volume is not the same as 1:1 by weight. Mixing a volume-rated resin on a scale throws the chemistry off, even if your measurements look precise. Read the label first.
Why is my resin still sticky after curing?
Sticky or soft resin almost always means too little hardener or incomplete mixing, so the reaction never finished. Confirm you used the correct ratio by the correct method, and that you mixed a full three minutes while scraping the cup's sides and bottom. If only spots are tacky, the mixing — not the ratio — was the problem.
Can I fix resin that didn't cure?
Usually not. Once mixed, resin can't be re-balanced. If a thin top layer is tacky, give it another 24–48 hours somewhere warm and dry. If it stays sticky, scrape it out, clean and dry the mold, and recast. The silicone mold itself almost always survives the mistake, so you only lose a little resin.
Why did my resin get hot and crack?
Excess hardener or pouring too thick for the resin type causes overheating, since epoxy releases heat as it cures. A fast art resin poured deep can yellow and crack from the inside. Use a slow deep-pour formula for thick casts and save fast resin for thin layers to keep the heat under control.
Ready to put a perfect mix to work? Browse easy-release, high-detail shapes in our resin mold collection and give your next pour the cast it deserves.
0 comments
